Hardened Steel Housing Stainless Steel Ball Joint SR - G Series
With Rubber Grommet
Product Description
The SR-G Series heavy-duty ball joints combine a hardened steel
housing and precision ball stud to maximize wear resistance and
service life. Zinc plating with yellow dichromate treatment
enhances corrosion protection while maintaining uniform aesthetics.
A precision-located snap ring secures the ball stud within the
polymer shell, ensuring controlled movement without excessive play.
The stress-relieved retaining ring design withstands extreme
vibration, shock loads, and abrasive conditions, making it ideal
for medium-to-heavy-duty industrial applications. Engineered as an
upgraded alternative to standard metal-to-metal R-G ball joints,
this cost-effective solution delivers durability in harsh
environments while reducing maintenance frequency. Key features
include optimized load distribution, minimal friction, and
compliance with demanding operational standards.
Technical Parameters
| Product Name | SR-G Series Ball Joints |
| Material | Ball Stud –
• Low carbon steel, heat treated
• Zinc plated, clear dichromate treated
Body –
• Low carbon steel, heat treated
• Zinc plated, clear dichromate treated
Retaining Ring –
• Galvanized music wire
• Stress relieved |
| Features | • Heat treated steel body,ball stud and retaining ring design
offers economic solution to medium to heavyduty ball joint
applications
• Ball stud and body arecase hardened for extended wear life
• Retaining ring assembly helps to prevent ball stud pull out in
higher force applications
• Rubber grommet provides a durable seal against contaminants
• Can be used in a wide range of temperatures:-30°F — 250°F(-34°C —
121°C)
• Custom sizes and assemblies can be built to your specifications,
including:
- male to male or female tofemale
- right or left-handed threads
• Many metric sizes available — consult factory
• Meets SAE specification J490 (Type G/Style 4) |
| Brochure | Free samples are available if all sizes are the same as what we
have available, if not, please contact me for a cost effective
solution |
| Belivery Time | 7-40 working days |
| Applications | Various integral ball joint applications, including:
• Lawn and garden equipment
• Construction
• Industrial equipment |
| Specification | SR-G_Ball
Joint.pdf |
| Other Related Products | R - G
Series Stainless Steel Ball Joint S / SS / SC
Series Metal Ball Joint |

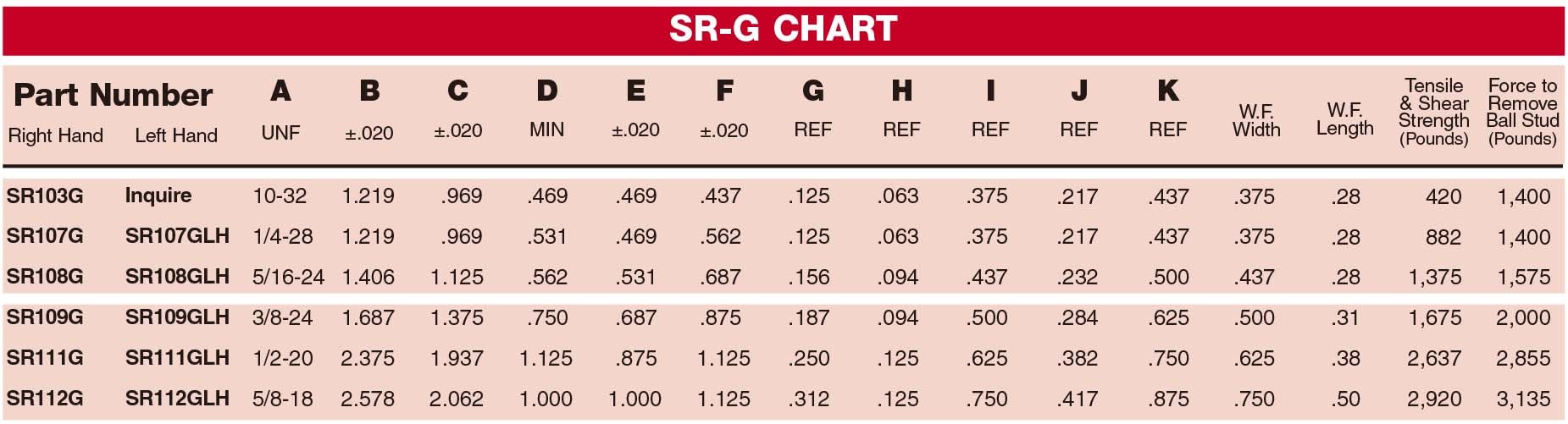

Chart Notes: 1.Ball Joint can be ordered without the grommet by
dropping the “G” suffix. Example: SR107
