VibraLink Industrial Rod Ends , Metal to Metal Spherical Insert
Captured by Molded Vibration Dampening Neoprene
Product Description
This heavy-duty rod end series combines standard flexibility with
enhanced vibration dampening durability, designed for industrial
motion transfer systems. Fully interchangeable with most standard
rod ends, it offers seamless integration into linkage applications
prone to vibration. Constructed from low-carbon steel with zinc
plating and yellow dichromate treatment, the body and ball ensure
extended corrosion resistance. The case-hardened ball, paired with
a zinc yellow-plated steel race, minimizes wear while swaged
precision engineering optimizes misalignment tolerance, reducing
system binding. Operates reliably across wide temperature ranges
and is available in studded configurations with right-hand (RH) or
left-hand (LH) threads. Ideal for machinery, automation, and
high-vibration environments requiring durable, low-maintenance
solutions. Combines cost-effective interchangeability with robust
performance for demanding industrial applications.
Technical Parameters
| Product Name | VibraLink Industrial Rod Ends, |
| Specification | Metal to Metal Spherical Insert Captured by Molded Vibration
Dampening Neoprene |
| Material | Ball –
• Low Carbon Steel
• Case Hardened
• Zinc Plated, Yellow Dichromate Treated
Body –
• Low Carbon Steel
• Zinc Plated, Yellow Dichromate Treated
Race –
• Low Carbon Steel
• Zinc Plated, Yellow Dichromate Treated Rubber – • Neoprene |
| Features | • Inner spherical bearing member is joined to housing via Neoprene
molding to deliver strong vibration dampening characteristics(60
and 70 Durometer available, other hardnesses available upon
request)
• Spherical insert allows for misalignment to prevent binding and
lost motion
• Primary loading should be in radial direction
• Can be used in a wide range of temperatures:-30°F — 250°F(-34°C —
121°C) |
| Brochure | Free samples are available if all sizes are the same as what we
have available, if not, please contact me for a cost effective
solution |
| Belivery Time | 7-40 working days |
| Applications | • Numerous mechanical motion transfer devices/applications,
including:
• Truck/bus
• Hand & foot controls
• Motorcycles
• Construction equipment
• Agriculture equipment |
| Documentation | VibraLink.pdf |

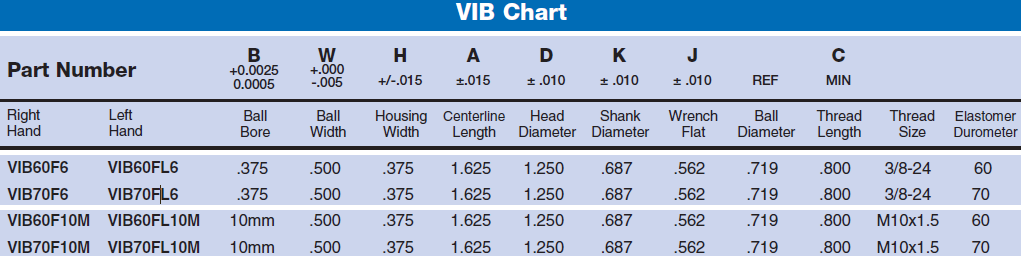

Chart Notes: All tolerances are represented in inches.
OEM/ODM
Production Process
Packing and Shipping
A.Packing
Usually according to the specific size of the product to arrange
the packaging, small goods are packed in cardboard boxes, large
goods are packed in cardboard boxes + wooden pallets, or one-piece
paper pallets, if you have special needs, please contact us, we
will try our best to serve you!
cardboard boxes (small goods) | cardboard boxes+wooden pallets (large goods) | one-piece paper pallets (large goods) |
 |  |  |
B.Shipping
We have cooperated with the world's major logistics companies, you
can choose the logistics mode that suits your needs, so that the
goods can arrive within the specified time.
| Logistic Company |  |  |  |  |  |
| Mode of Transportation | Land, sea and air transportation |
C.Payment Methods
Note:If you need another payment method, please contact us.
About us
Your Professional Control Cable Manufacturer!
Phidix Motion Controls (PMC) started the business in 2004,CMC
Provides a diverse range of high-end drive control products and
engineered solutions. The product line includes various sizes of
control flex shafts, cab units and a range of standard parts for a
wide range of high-end industrial customer markets.
| Why choose us |
Patent Certificate | Reasonable Prices |
The company's products have passed the IATF16949 patent
certificate, which ensures the quality of the products. | High quality + factory price + fast response+reliable service is
what we try our best to provide for you. |
Rapid Delivery | ODM/OEM |
We have all the styles you need in stock and can deliver on short
notice. | When you make a request, our engineers provide you with a faster
and better solution based on your needs. |
