UMAX - T Precision / Heavy Duty Rod Ends 3 - Piece , Ultimate
Strength , Heat Treated Alloy Steel , Nickel Plated
Product Description
The UMAX-T Series rod ends deliver ultimate strength and precision
motion control for heavy-load automotive and racing applications.
Featuring a 3-piece PTFE-lined design, its enlarged head diameter
(vs. NSMX-T) increases radial strength by 25% in critical
zones.Constructed with thru-hardened bearing-grade steel balls
(precision-ground for minimal wear) and a heat-treated alloy steel
body, the UMAX-T ensures durability under extreme loads. The
low-carbon steel raceway and permanently bonded PTFE liner reduce
friction, maintenance, and downtime. Bright electroless nickel
plating enhances corrosion resistance while maintaining a premium
aesthetic for exposed components.
Technical Parameters
| Product Name | UMAX - T Precision / Heavy Duty Rod Ends |
| Specification | 3 - Piece , Ultimate Strength , Heat Treated Alloy Steel , Nickel
Plated |
| Material | Ball –
• 52100 Steel
• Rc 56 Min.
• Hard Chrome Plated
Body –
• Alloy Steel, Heat Treated
• Bright Electroless Nickel Plated
Race –
• Low Carbon Steel
• Zinc Plated, Clear Chromate Treated
Liner – • PTFE Fabric, Permanently Bonded to I.D. |
| Features | • 3-piece design uses alloy steel body and increased hea diameter, providing for the ultimate in higher strength performance in a precision rod end
• Body is bright electroless nickel plating for bright mirror finish and superior corrosion resistance
• PTFE lined design minimizes wear between working surfaces (lower maintenance, increased life)
• Precision spherical bearing insert allows for optimum contact between the ball and race extending the product life
• Can be used in a wide range of temperatures:-65°F — 250°F (-54°C — 121°C)
• Offered in studded and right or left-handed versions
• Custom assemblies can be built to your specifications |
| Brochure | Free samples are available if all sizes are the same as what we
have available, if not, please contact me for a cost effective
solution |
| Belivery Time | 7-40 working days |
| Applications | Higher load, precision motion control devices and applications,
including:
• Racing/hot rods
• Automotive |
| Other Related | TSMX-T/TSFX-T Rod Ends NSMX-T Rod Ends |

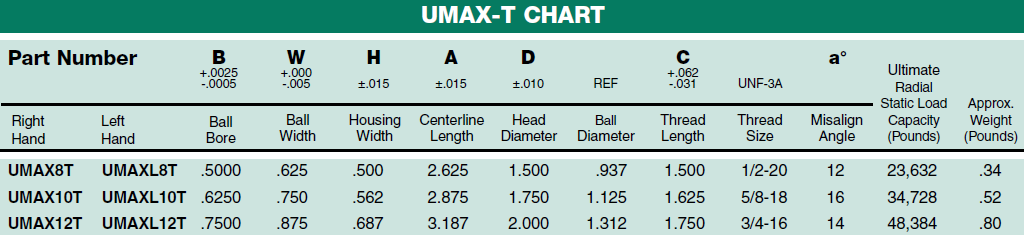

Chart Notes: 1. This series is also available in a studded
configuration. Specify by adding "S" to suffix.
Example: UMAX10TS
