SSHMY - T Precision / Heavy Duty Rod Ends 3 - Piece , Stainless
Steel Rod Ends , Heavy Duty Shank , PTFE Lined
Product Description
The SSHMY-T Series stainless steel rod ends combine a PTFE-lined
steel race design with a step shank and shouldered ball
configuration, delivering unmatched load capacity and misalignment
tolerance in corrosive, cleanroom, or food-grade environments.
Engineered for high-precision motion control, the heat-treated 440C
stainless steel ball and 17-4 stainless steel body/raceway ensure
extreme durability and resistance to chemicals, moisture, and
sterilization.The integrated step shank eliminates spacer requirements while
enhancing structural rigidity. A permanently bonded PTFE liner
minimizes friction, enabling self-lubrication, low particulate
generation, and maintenance-free operation—ideal for pharmaceutical
automation, semiconductor manufacturing, and food processing
machinery. Available in right/left-handed threads for flexible
installation.

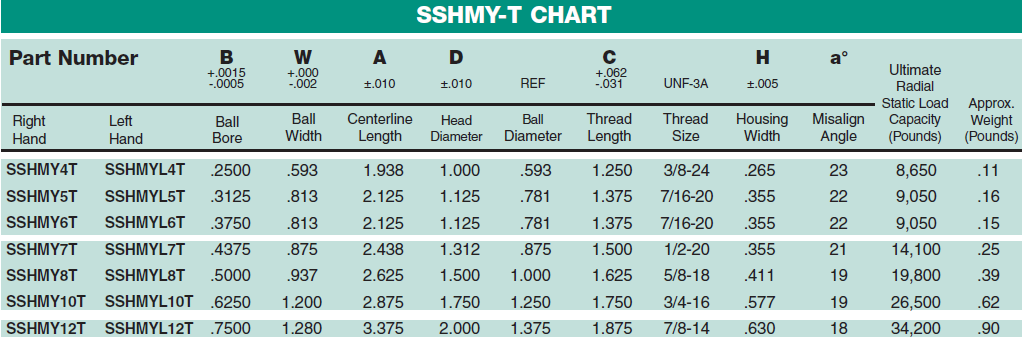

Technical Parameters
| Product Name | SSHMY-T Precision/Heavy Duty Rod Ends |
| Specification | 3-Piece, Stainless Steel, High Misalignment, Heavy Duty Shank, PTFE
Lined |
| Material | Ball –
• 440c Stainless Steel, Heat Treated
Body & Race –
• 17-4 Stainless Steel, Heat Treated
Liner – • PTFE Fabric, Permanently Bonded to I.D. |
| Features | • 3-piece design uses stainless steel throughout to provide for the
ultimate in corrosion
resistance in a high strength precision rod end
• Greater versatility of angular movement is realized via use of
special "high misalignment"shouldered ball
• Increased resistance to radial static load capacity via heavy
duty step shank design
• PTFE lined design minimizes wear between working surfaces (lower
maintenance, increased life)
• Precision spherical bearing insert allows for optimum contact
between the ball and race extending the product life
• Can be used in a wide range of temperatures:-65°F — 250°F(-54°C —
121°C)
• Offered in right or left-handed versions |
| Brochure | Free samples are available if all sizes are the same as what we
have available, if not, please contact me for a cost effective
solution |
| Belivery Time | 7-40 working days |
| Applications | Environmentally challenging and heavier duty precision motion
control devices and applications, including:
• Heavy duty marine
• Racing
• Specialized industrial equipment
(IE: food, medical, etc.) |
| Documentation | rod-ends
SSHMY-T.pdf |

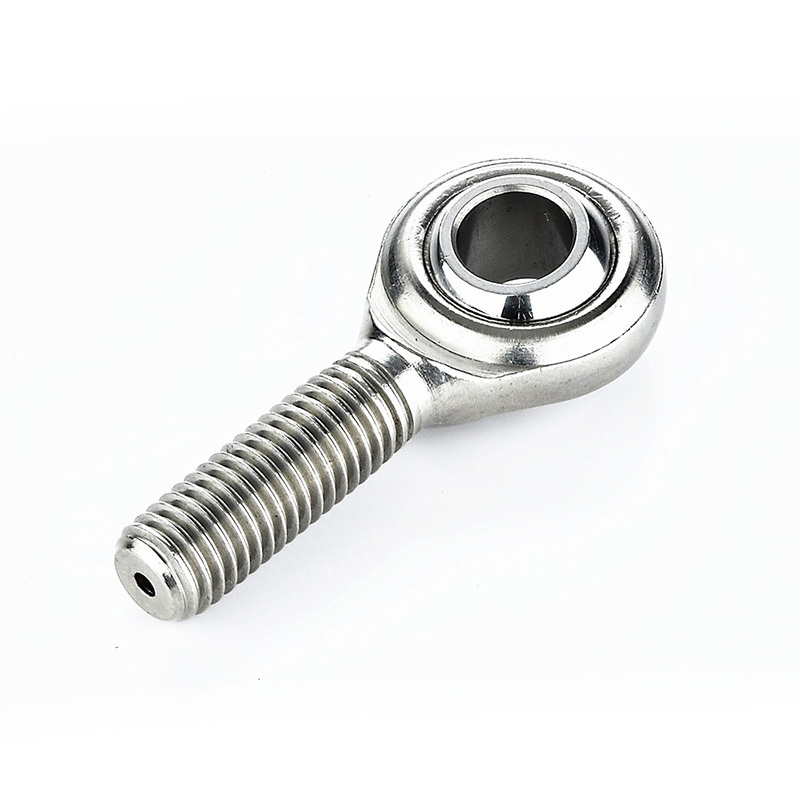

Real Picture
OEM/ODM
Production Process
Packing and Shipping
A.Packing
Usually according to the specific size of the product to arrange
the packaging, small goods are packed in cardboard boxes, large
goods are packed in cardboard boxes + wooden pallets, or one-piece
paper pallets, if you have special needs, please contact us, we
will try our best to serve you!
cardboard boxes (small goods) | cardboard boxes+wooden pallets (large goods) | one-piece paper pallets (large goods) |
 |  |  |
B.Shipping
We have cooperated with the world's major logistics companies, you
can choose the logistics mode that suits your needs, so that the
goods can arrive within the specified time.
| Logistic Company |  |  |  |  |  |
| Mode of Transportation | Land, sea and air transportation |
C.Payment Methods
Note:If you need another payment method, please contact us.
