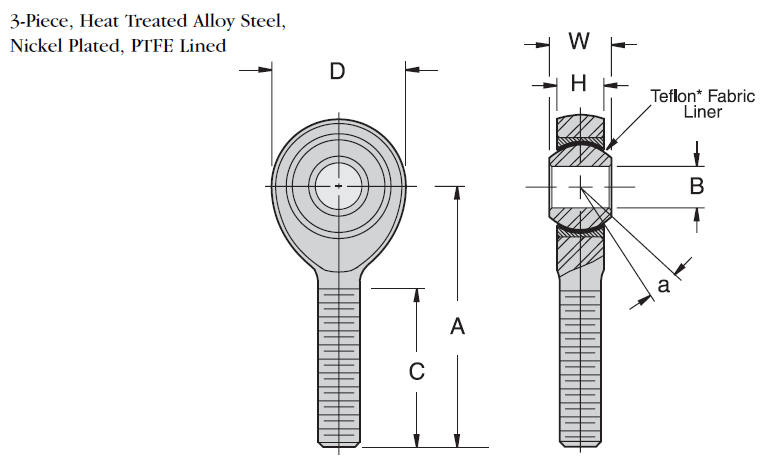

NSMX - T Precision / Stainless Steel Rod Ends 3 - Piece , Heat
Treated Alloy Steel , Nickel Plated , PTFE Lined
Product Description
The NSMX-T Series heavy-duty rod ends are engineered for high-load
automotive and racing applications. Featuring a 3-piece PTFE-lined
design, they combine a heat-treated alloy steel housing (superior
to standard steel), a thru-hardened bearing-grade steel ball for
precision wear resistance, and a low-carbon steel raceway. The
permanently bonded PTFE liner reduces friction and maintenance
while extending operational life. Bright electroless nickel plating
ensures corrosion resistance and a polished finish, ideal for harsh
environments. Designed for motion control systems in racing,
automotive, and industrial machinery, this series prioritizes
durability and performance.
Technical Parameters
| Product Name | NSMX - T Precision / Stainless Steel Rod Ends |
| Specification | 3 - Piece , Heat Treated Alloy Steel , Nickel Plated , PTFE Lined |
| Material | Ball –
• 52100 Steel
• Rc 56 Min.
• Hard Chrome Plated
Body –
• Alloy Steel,Heat Treated
• Zinc Plated, Clear Chromate Treated
Race –
• Low Carbon Steel
• Zinc Plated, Clear Chromate Treated
Liner – • PTFE Fabric, Permanently Bonded to I.D. |
| Features | • 3-piece design uses alloy steel body which provides for higher strength performance in a precision rod end
• Body is bright electroless nickel plated for bright mirror finish and superior corrosion resistance
• PTFE lined design minimizes wear between working surfaces (lower maintenance, increased life)
• Precision spherical bearing insert allows for optimum contact between the ball and race extending the product life
• Can be used in a wide range of temperatures:-65°F — 250°F (-54°C
— 121°C)
• Offered in studded and right or left-handed versions
• Custom assemblies can be built to your specifications |
| Brochure | Free samples are available if all sizes are the same as what we
have available, if not, please contact me for a cost effective
solution |
| Belivery Time | 7-40 working days |
| Applications | Higher load, precision motion control devices and applications,
including:
• Racing/hot rods
• Automotive |
| Other Related | TSMX-T/TSFX-T Rod Ends UMAX-T Rod Ends |

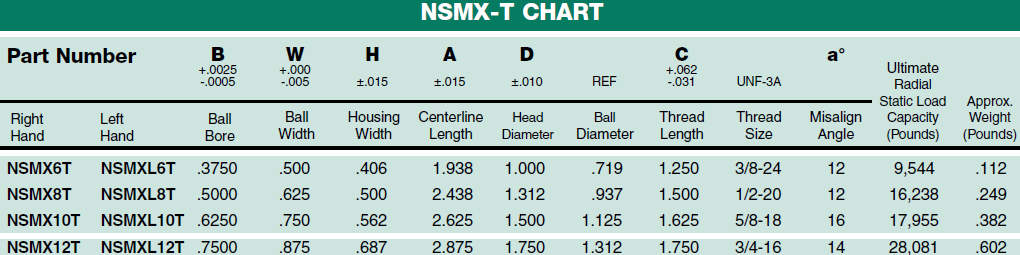

Chart Notes: 1. This series is also available in a studded
configuration. Specify by adding "S" to suffix. Example: NSMX10TS
