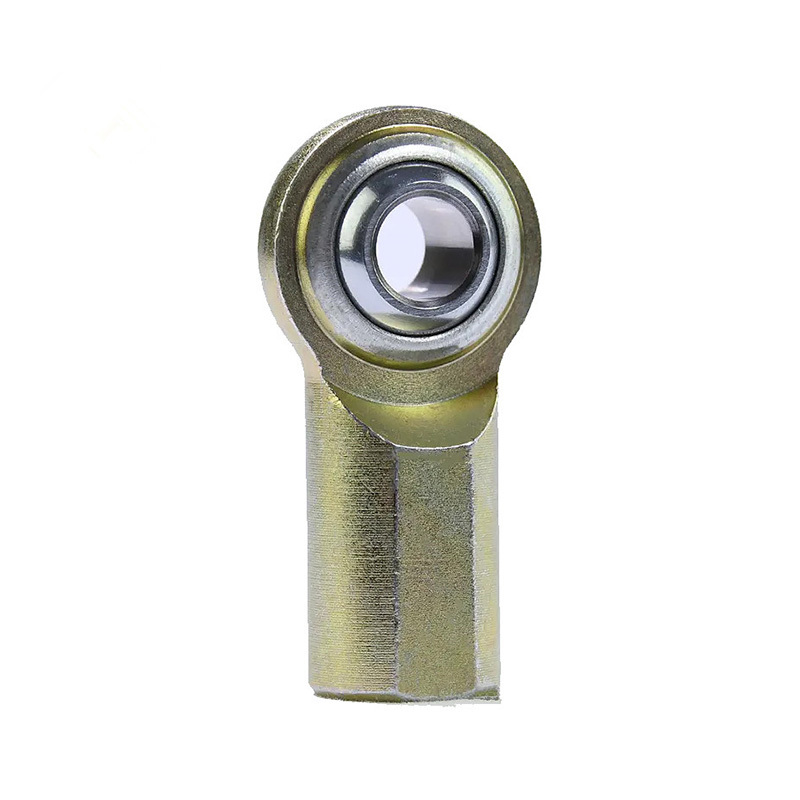

Stainless Steel Rod Ends MTSM / MTSF Industrial , Commercial Rod
Ends 3 - Piece , Metal to Metal
Product Description
The MTSM/MTSF Series rod ends provide precision motion control with
a durable metal-to-metal design, ideal for industrial machinery and
automation. Engineered for high-load performance, the MTSM3-MTSM16
and MTSF3-MTSF16 models deliver static load capacities up to 1,531
lbs (MTSF3) and 1,169 lbs (MTSM3), ensuring reliability in
demanding environments.
Technical Parameters
| Product Name | MTSM/MTSF Industrial/Commercial Rod Ends |
| Specification | 3-Piece, Metal to Metal |
| Material | Ball –
• 52100 Steel
• Rc 56 Min.
• Hard Chrome Plated
Body –
• Low Carbon Steel
• Zinc Plated, Clear Chromate Treated
Race –
• Alloy Steel,Heat Treated
• Zinc Plated, Clear Chromate Treated |
| Features | • 3-piece low carbon metal to metal design, our cost effective
model in precision
rod end series
• Precision spherical bearing insert allows for optimum contact
between the ball and race extending the product life
• Can be used in a wide range of temperatures:-65°F — 250°F(-54°C —
121°C)
• Offered in studded and right or left-handed versions
• Custom assemblies can be built to your specifications
• Meets SAE spec J1120 |
| Brochure | Free samples are available if all sizes are the same as what we
have available, if not, please contact me for a cost effective
solution |
| Belivery Time | 7-40 working days |
| Applications | Higher precision motion control devices/applications, including:
• Wide range of industrial equipment
• Racing |
| Documentation | rod-ends
MTSM-MTSF.pdf |
Chart notes: 1. For standard lubrication fitting, add "Z" to
suffix. Example: MTSM10Z 2. This series is also
available in a studded configuration.Specify by adding "S" to
suffix. Example: MTSM10S
