High precision spherical plain joint bearings female rod end
bearing
【 Product Description 】
A rod end bearing, also known as a heim joint (N. America) or rose
joint (U.K. and elsewhere), is a mechanical articulating joint.
Such joints are used on the ends of control rods, steering links,
tie rods, or anywhere a precision articulating joint is required. A
ball swivel with an opening through which a bolt or other attaching
hardware may pass is pressed into a circular casing with a threaded
shaft attached. The threaded portion may be either male or female.
【 Feature 】
Large load capacity and impact resistance, and corrosion
resistance, wear resistance, self-aligning, good lubrication
【 Application 】
Widely used for lower speed swinging motion and Tilting and
rotating motion
【 Our ball joints, rod ends, and assemblies can be found in the
following applications 】
• Tie rods
• Operator controls
• Food processing
• Drag links
• Printing and labeling equipment
• Door mechanisms
• Steering controls
• Hydraulic/pneumatic cylinder ends
• Conveying equipment
【 When ordering linkage products, it is helpful to have the
following information 】
• Diameter (thread size) of the product
• Race construction: 2-piece, molded nylon, bronze
• Body and ball material: low carbon or stainless steel
• Male or female threads; Right or left hand
• Plain or with an optional stud
• Application
• Actual working load
• Conditions/environment: Dirt, heat, cold, moisture, etc.
• Part number if available
• Usage quantity
【 Drawing 】

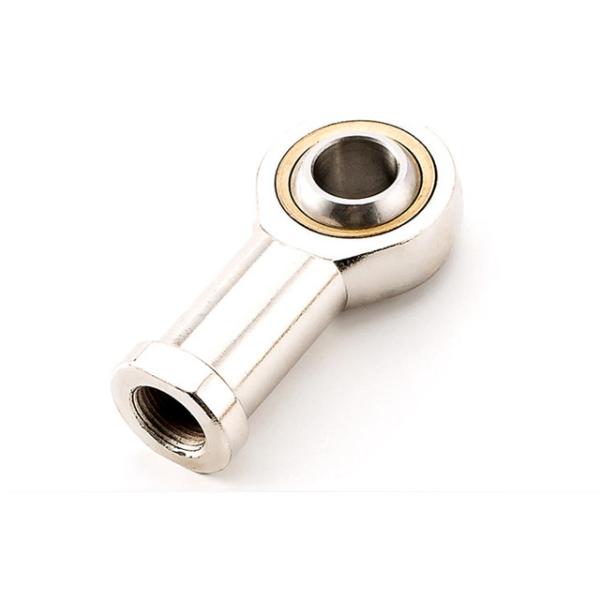

【 Real Picture 】
