TSMX - T / TSFX - T Precision / Heavy Duty Rod Ends 3 - Piece ,
Heat Treated Alloy Steel Body , PTFE Lined
Product Description
TSMX-T/TSFX-T Series: Heavy-duty 3-piece PTFE-lined rod ends
engineered for high-load, precision motion control. Features a
heat-treated alloy steel housing (superior to standard 2-/3-piece
designs) and a thru-hardened, precision-ground bearing-quality
steel ball for enhanced wear resistance. Permanently bonded PTFE
liner minimizes friction and maintenance while extending service
life. Zinc-plated body and low-carbon steel raceway with clear
chromate finish ensure corrosion resistance and aesthetic
durability for exposed surfaces. Ideal for robotics, automation,
and machinery requiring reliable performance under extreme loads.
Available in studded configurations with right-hand (RH) or
left-hand (LH) threads. Combines industrial-grade materials,
reduced maintenance, and seamless compatibility with demanding
motion systems.
Technical Parameters
| Product Name | TSMX-T/TSFX-T Precision/Heavy Duty Rod Ends |
| Specification | 3-Piece, Heat Treated Alloy Steel Body, PTFE Lined |
| Material | Ball –
• 52100 Steel
• Rc 56 Min.
• Hard Chrome Plated
Body –
• Alloy Steel,Heat Treated
• Zinc Plated, Clear Chromate Treated
Race –
• Low Carbon Steel
• Zinc Plated, Clear Chromate Treated
Liner – • PTFE Fabric, Permanently Bonded to I.D. |
| Features | • 3-piece metal to metal design uses an upgraded alloy steel body
and raceway for
increased rod end strength
• PTFE lined design minimizes wear between working surfaces (lower
maintenance, increased life)
• Can be used in a wide range of temperatures:-65°F — 250°F(-54°C —
121°C)
• Offered in studded and right or left-handed versions
• Custom assemblies can be built to your specifications
• Meets SAE spec J1120 |
| Brochure | Free samples are available if all sizes are the same as what we
have available, if not, please contact me for a cost effective
solution |
| Belivery Time | 7-40 working days |
| Applications | Higher load, precision motion control devices and applications,
including:
• Racing
• Construction equipment
• Scales
• Wide range of heavy industrial equipment |
| Documentation | rod-ends
TSMX-T-TSFX-T.pdf |

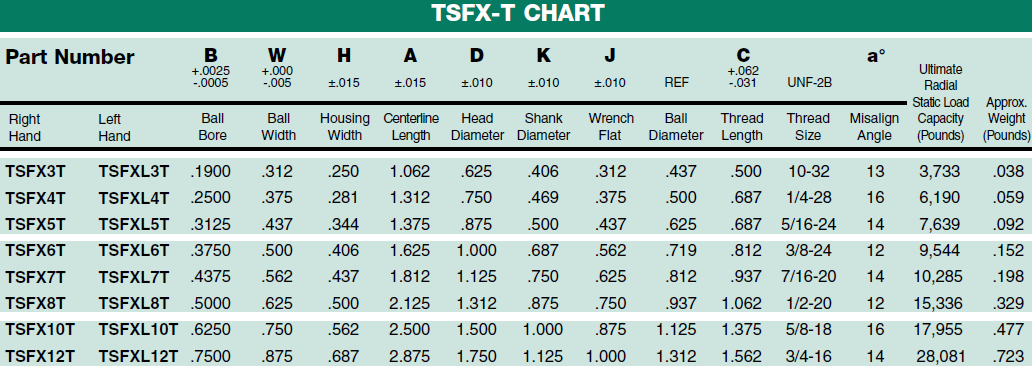

Chart Notes: 1. This series is also available in a studded
configuration. Specify by adding "S" to suffix.
Example: TSMX10TS
