Custom Control Cables Accessories , Auto Parts & Connections , Rod
Ends , Ball Joints
【 Applications 】
Numerous precision mechanical motion transfer devices/applications,
including:
• Industrial equipment
• Precision machinery
【 Features 】
• Oil impregnated bronze raceway delivers longer wear life and
lowers maintenance cost (high
precision, frictionless performance)
• Can be used in a wide range of temperatures (including ultra high
temp):
-30°F — 300°F(-34°C —149°C)
• Offered in studded and right or left-handed versions
• Special custom alloy construction available
• Custom assemblies can be built to your specifications
• Meets ISO 12240 (DIN 648)
【 Material 】
Ball
• 52100 Steel Rc 56 Min.
• Hard Chrome Plated
Body
• Low Carbon Steel
• Zinc Plated, Clear Dichromate Treated
Race
• Sintered Phosphor Bronze
• Oil Impregnated
【 Rod Ends Industrial / Commercial 】
Suitable for many high precision/mechanical motion transfer
applications, the DBM/DBF Series offers a four-piece, bronze race
design in metric thread sizing. Its oil impregnated bronze raceway
delivers precise and extremely low friction performance, leading to
longer wear life, higher temperature performance and lower
maintenance costs. Ball materials are produced from bearing quality
steel that is thru hardened and finish ground, adding to its
precision fit and increased wear performance. Body materials are
produced from economical low carbon steel and are zinc plated for
extended corrosion resistance. Its clear chromate treatment is
suited for high visibility exposed surfaces requiring aesthetically
pleasing bright metal finishes. It can be used in a wide operating
temperature range. Studded and right or left-handed thread versions
are available.Grease fittings are optionally available.
The DBM/DBF Series is just one of many within our broad line of
industrial/commercial rod ends. For full product line detail,
contact us for a comprehensive catalog.

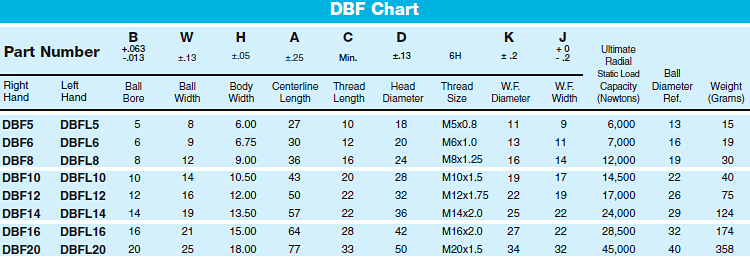

【 DBM/DBF 】
