Threaded Ball Joint Linkages Consist Of A Ball Socket And A Ball Stud

【 Product Description 】

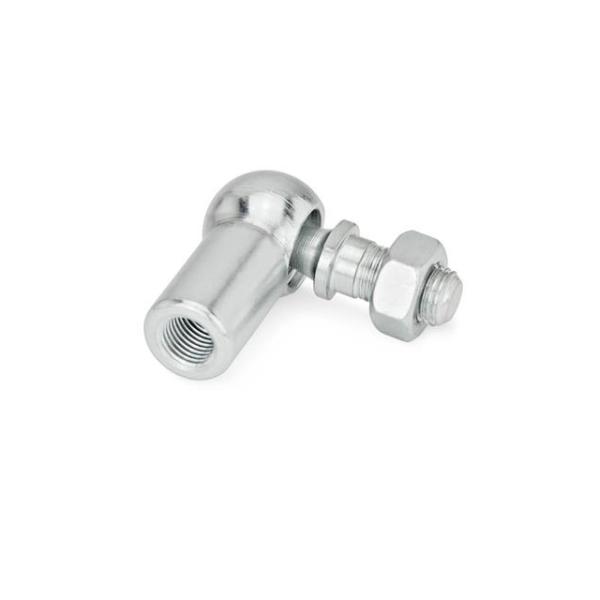

Threaded ball joint linkages consist of a ball socket and a ball stud.

The swivel angle for the type with safety catch (types CS) is 15°, without safety catch (types C) it is 18°.

During assembly, the ball socket is pushed over the snap ring, which acts as a retainer. If the retaining forceis not sufficient, the connection of ball socket / ball stud can be secured by the safety catch, which can easily be fitted.

To protect the threaded ball joint linkages against contamination, dust caps can be used.

The hexagon nut is part of the threaded ball joint linkages with threaded stud.

【 Protective Finish 】

Body and ball stud Zinc plated and passivated; ball stud is de-embrittled. The assembly is lubricated.

【 Type 】

【 Specification 】

【 Dimensions in: Metric 】

【 Drawing 】
