S-Knurling Quick-Disconnect Ball Joints: Fast Assembly,
Corrosion-Resistant (Zinc Plated, Heat-Treated)
Product Description
The S-Knurling Series quick-disconnect ball joints enable rapid
assembly/disassembly for high-frequency industrial applications.
Featuring a spring-loaded sleeve and precision knurling, these
compact, cost-effective joints are engineered for machinery
requiring repeated connections. Components are crafted from
low-carbon steel with zinc plating and yellow dichromate treatment
for superior corrosion resistance. Heat-treated ball studs enhance
wear durability in abrasive environments. Ideal for automation,
packaging, and material handling systems, the S-Knurling Series
reduces downtime through tool-free operation while maintaining
structural integrity under dynamic loads.Maintenance-minimized
alternative to traditional threaded designs.
Technical Parameters
| Product Name | S-Knurling Series Ball Joints |
| Material | Ball Stud –
• Low carbon steel, heat treated
• Zinc plated, clear dichromate treated Sleeve –
• Low carbon steel
• Zinc plated, clear dichromate treated Body • Low carbon steel Spring • Stainless steel |
| Features | • Three different configurations,all with steel ball stud, sleeve
and body to match your load and cost requirements
• Quick pull back, “no tools required” disconnect assembly provides
easier access, faster maintenance
• Can be used in a wide range of temperatures:-60°F — 250°F(-51°C —
121°C)
• Right and left-handed versions available
• Custom sizes and assemblies can be built to your specifications
• S/SS Series meets SAE J490 specification
(S: type S/style 1SS: type S/style 2) |
| Brochure | Free samples are available if all sizes are the same as what we
have available, if not, please contact me for a cost effective
solution |
| Belivery Time | 7-40 working days |
| Applications | Cable assemblies, light industrial, agricultural, lawn and garden,
and racing throttle links • S-Knurling ball joints are designed for an application where quick connect or
disconnect is needed at assembly or in field servicing |

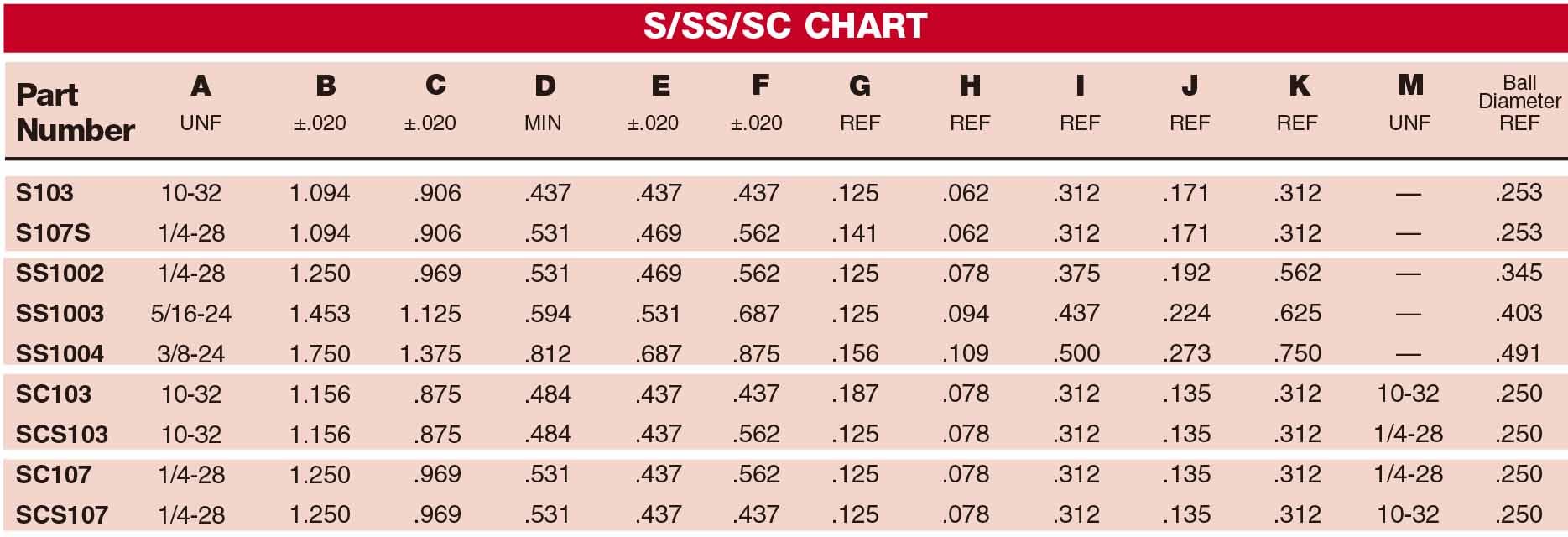

| Specification | S-SS-SC_Ball Joint.pdf |
| Other Related Products | R - G
Series Stainless Steel Ball Joint SR - G
Series Stainless Steel Ball Joint |
Real Picture
OEM/ODM
Production Process
Packing and Shipping
A.Packing
Usually according to the specific size of the product to arrange
the packaging, small goods are packed in cardboard boxes, large
goods are packed in cardboard boxes + wooden pallets, or one-piece
paper pallets, if you have special needs, please contact us, we
will try our best to serve you!
cardboard boxes (small goods) | cardboard boxes+wooden pallets (large goods) | one-piece paper pallets (large goods) |
 |  |  |
B.Shipping
We have cooperated with the world's major logistics companies, you
can choose the logistics mode that suits your needs, so that the
goods can arrive within the specified time.
| Logistic Company |  |  |  |  |  |
| Mode of Transportation | Land, sea and air transportation |
C.Payment Methods
Note:If you need another payment method, please contact us.
About us
Your Professional Control Cable Manufacturer!
Phidix Motion Controls (PMC) started the business in 2004,CMC
Provides a diverse range of high-end drive control products and
engineered solutions. The product line includes various sizes of
control flex shafts, cab units and a range of standard parts for a
wide range of high-end industrial customer markets.
| Why choose us |
Patent Certificate | Reasonable Prices |
The company's products have passed the IATF16949 patent
certificate, which ensures the quality of the products. | High quality + factory price + fast response+reliable service is
what we try our best to provide for you. |
Rapid Delivery | ODM/OEM |
We have all the styles you need in stock and can deliver on short
notice. | When you make a request, our engineers provide you with a faster
and better solution based on your needs. |
FAQ
Q: How do you design control cables?
A: We must first understand your application and must consider many
factors, such as length, outside diameter, working input force,
maximum input force, travel, housing material, requirements for the
wire rope, material of the terminal fittings (carbon steel or
stainless steel), etc.
Q: How do I place my order?
A: We produce according to the specifications, drawings or samples
provided by the customer.
Q: Is the quality of your product good? How can I trust you?
A: We are a professional manufacturer of wire assemblies with more
than 10 years of production experience in China. We have been
providing first-class service and quality products to make our
customers successful. Please contact our sales department and let
us know what we can do for you, trust us, we won't let you down.
Q: What is the lead time for my order?
A: This depends a lot on the size of your order. Usually 15 days.
If you need it urgently, we will do our best to fulfill your
request.
